Product Details

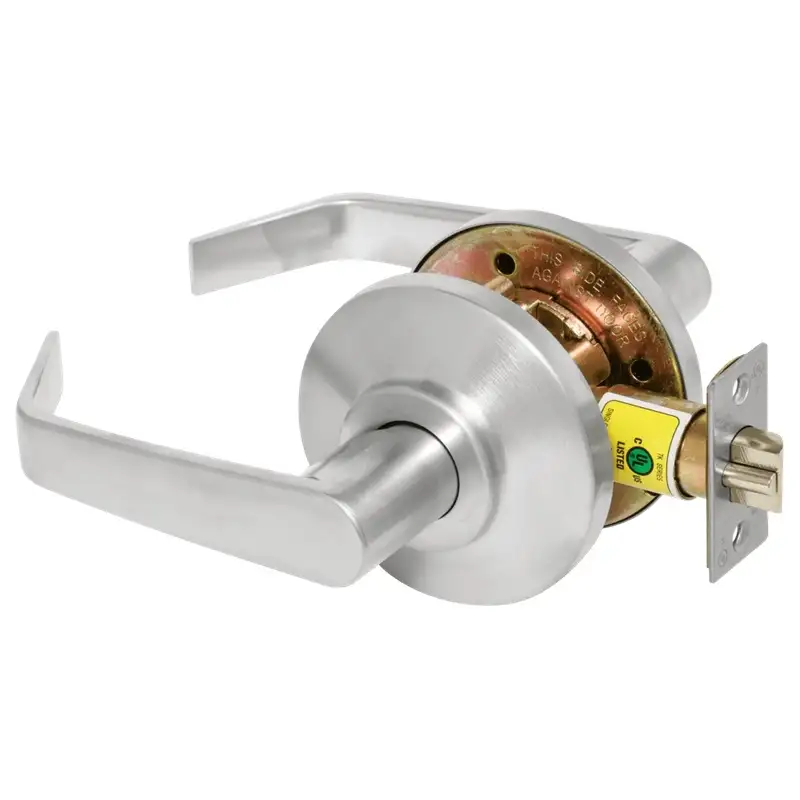

BEST 7KC30N Grade 2 Passage Lever Set Lock
Function: ANSI # F75 Passage Set Lock
Latch operated by: Rotating inside lever, Rotating outside lever
Outside Lever Locked by: Cannot be unlocked
Outside Lever Unlocked by: Always locked
Inside Lever Locked by: Cannot be locked
Inside Lever Unlocked by: Always Unlocked
Backset: 2 3/4″ standard. 2-3/8″, 3 3/4″ and 5″ available.
Finishes: 606 satin brass, 612 satin bronze, 613 oxidized satin bronze, oil rubbed, 626 satin chromium plated
Latch: 1/2″ throw deadlocking latch. Front: 2 1/4″ x 1 1/8″ x 5/32″ standard for 2 3/4″ backset; 2 1/4″ x 1″ x 5/32″ for 2 3/8″ backset.
Lever: 5 1/4″ long handle with return. Projection on door 2 1/2″ . Zinc base, plated to match finish.
Material: Component parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.
Mounting: 2 1/8″ diameter bore for lock housing, 1″ diameter for latch tube.
Rose: D3 1/2″ diameter mounting screws concealed.
Strike: S3 4 7/8″ x 1 1/4″ with curved lip & box.(ANSI A115.2 for 1 3/4″ doors).
Door thickness: 1 3/8″ to 2″ .
Cylindrical chassis to fit common door preparation.
Through-bolt mounting studs increase torque resistance.
No exposed keeper hole on keyed levers for increased security.
Hub torque spring provides extra resistance to lever sag.
Snap-on inside rose (no exposed mounting screws).
Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
Lockset reversible for either hand of door without removing keyed lever.
Model: Best7KC30N14DS3,7KC30N14DS3605, 7KC30N14DS3612, 7KC30N14DS3613, 7KC30N14DS3626, 7KC30N15DS3605, 7KC30N15DS3612 7KC30N15DS3613, 7KC30N15DS3626, 7KC30N16DS3605, 7KC30N16DS3612, 7KC30N16DS3613, 7KC30N16DS3626,
7KC-30N14DS3,7KC-30N14DS3-605, 7KC-30N14DS3-612, 7KC-30N14DS3-613, 7KC-30N14DS3-626, 7KC-30N15DS3-605, 7KC-30N15DS3-612 7KC-30N15DS3-613, 7KC-30N15DS3-626, 7KC-30N16DS3-605, 7KC-30N16DS3-612, 7KC-30N16DS3-613, 7KC-30N16DS3-626
